Cabin Air Spring W02-358-7108 Suspension Rubber Bellows 1S5-057 Goodyear Replacement

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949:2009
Numéro de modèle:	G7108

Conditions de paiement et expédition:

Quantité de commande min:	6pcs
Prix:	$29.9-39.9/pc
Détails d'emballage:	Boîte à carton forte ou comme les clients ont besoin
Délai de livraison:	2-8 jours de travail
Conditions de paiement:	L / C, T / T, Western Union
Capacité d'approvisionnement:	1000pcs / semaine

Contact

Description de produit détaillée

Type de marchandises:	Printemps à air / coussin gonflable / ballons aériens	Condition:	100% neuf
Fonction:	Réduire le choc	Paquet de transport:	Cartons
Code HS:	8708809000	Garantie:	12 mois
Taper:	Rempli de gaz	Port:	Guangzhou
Mettre en évidence:	Cabin air spring replacement , Goodyear suspension rubber bellows , Cab air shock absorber

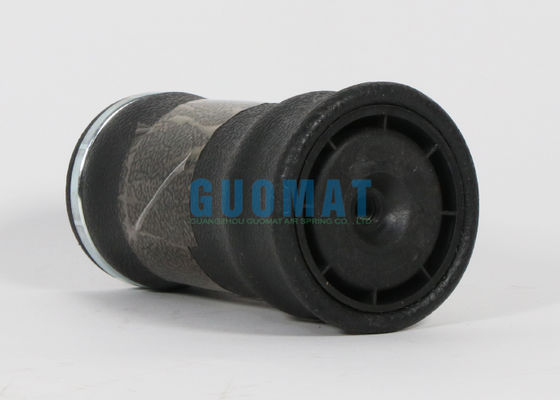

Cabin Air Spring W02-358-7108 Suspension Rubber Bellows 1S5-057 Goodyear Replacement

High-quality replacement air spring designed for Freightliner Mack trucks, manufactured with imported natural rubber for durability and performance.

Product Specifications

Product Name: Cab Air Spring
Certification: ISO/TS16949:2009
Packaging: Neutral Packing or Customized
Material: Imported Natural Rubber
Payment: TT/LC/Western Union
Brand: GUOMAT/Customized
Payment Terms: EXW/FOB/CIF/CFR
Warranty: 1 Year
Condition: 100% Brand-New
Delivery: 2-8 Work Days
OEM: Acceptable
Application: FOR FREIGHTLINER Mac-k truck
Samples: Available

OEM Numbers

Firestone W02-358-7108	Firestone W02 358 7108
Firestone W023587108	Firestone WO2-358-7108
Firestone WO2 358 7108	Firestone WO23587108
Goodyear 1S5-057	Goodyear 1S 5-057
Goodyear 1S5 057	Goodyear 1S5057
MANUFACTURING 1102-0075(NAV.)	MILSCO 07067A

Technical Data

Specification	Value
Threaded Hole	3/8-16 UNC
Air Fitting	1/8 NPT
Top Cover Diameter	71.5mm
Maximum Outside Diameter	130mm
Base Diameter	74mm
Base Height	38mm
Maximum Height	248mm
Minimum Height	61mm

Truck Cab Air Spring Installation Flowchart

Stage	Step	Key Operations/Precautions
Preparation and Safety	1. Lifting and fixing cab	[Core Safety] After using a dedicated lift to raise the cab, it must be immediately supported at the load-bearing structure with a sturdy safety bracket. It is strictly forbidden to rely solely on the lift to bear the load.
	2. Relieve system pressure	Disconnect the air line connector from the old air bag and release the internal air pressure.
	3. Disconnect	Disconnect the negative battery terminal; if necessary, tag and move any wiring or lines that are in the way.
Dismantle old parts	4. Locating and disconnecting gas lines	Locate the air spring under the rear of the cab and disconnect its air line.
	5. Remove the fixing bolts	Use appropriate tools to remove the upper and lower fixing bolts. If they are rusted, use lubricant and do not use brute force.
	6. Remove old parts and inspect	Remove the old airbag and check whether the mounting bracket and stop block are cracked or damaged.
Install new parts	7. Check new parts	Confirm that the new air spring is of the correct model and has no visible damage from transportation.
	8. Initial positioning	Place the new, uninflated airbag in the installation location. Do not inflate it before securing it.
	9. Connection and fastening	First screw in the new bolts by hand to ensure accurate alignment, and finally use a torque wrench to tighten them according to the value specified in the maintenance manual.
Recovery and testing	10. Connect the gas line and restore	Connect the air lines securely (make sure you hear a "click") and reassemble all wiring harnesses and components.
	11. Remove the bracket and connect the battery	After confirming that all work is completed, remove the safety bracket and connect the negative terminal of the battery.
	12. Startup and leak detection	Start the engine and observe the airbag inflating to the working height. Check all joints for leaks with soapy water.
	13. Functional testing	Take a short test drive to feel whether the cab stability and shock absorption effect have returned to normal.
