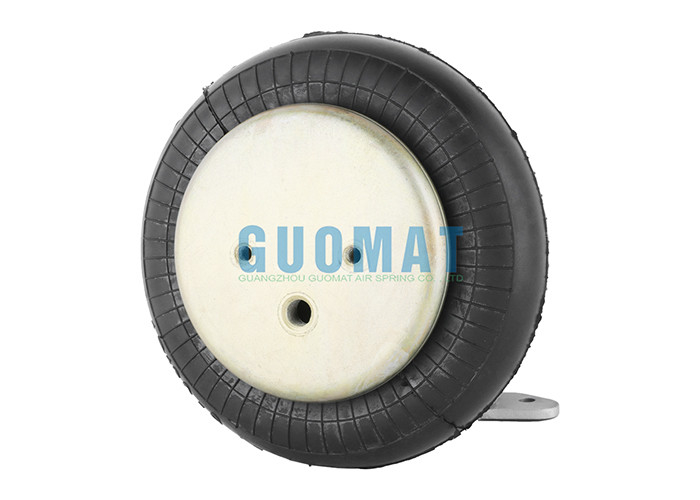

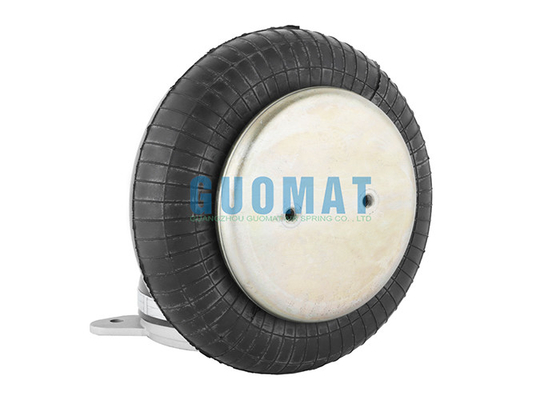

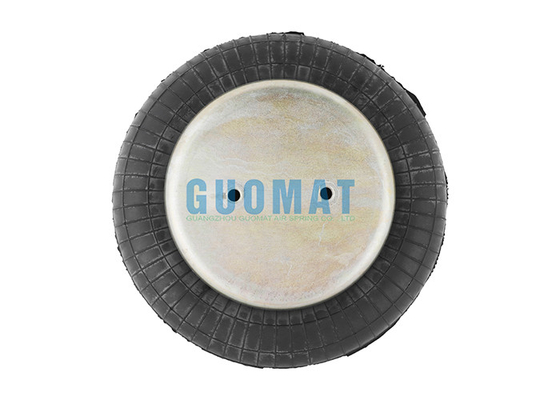

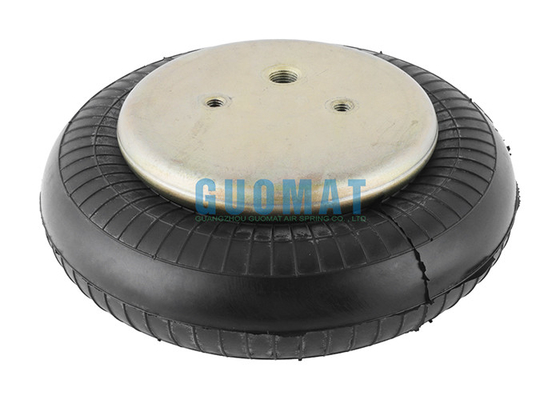

FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators

Détails sur le produit:

Lieu d'origine:	- Je ne sais pas.
Nom de marque:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B33014

Conditions de paiement et expédition:

Minimum Order Quantity:	5pcs
Prix:	USD49.9-59.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact

Description de produit détaillée

Pressure Ability:	0.2-0.8 M PA	Material:	Rubber and Steel
OEM:	Yes	Garantie:	1 année
Replacement:	Contitech FS 330-14 CI	Trou de gaz:	G1
Style:	Convoluted type Air Spring	Condition:	Tout neuf.
Mettre en évidence:	Des ressorts d'air de type enroulé , FS 330-14 Des ressorts d'air , Appareils à actionner des boucles pneumatiques

FS 330-14 Contitech Crimped Convoluted Air Springs G1 Air Fitting Pneumatic Bellows Actuators

Product Description

Brand: GUOMAT

Manufacturer Part Number: 1B33014

Manufacturer Warranty: 12 Months

Material: Rubber+Steel

Color: Balck

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

Quality: High-Quality

Refer to Contitech: FS 330-14 ; FS330-14 ; FS 330-14 CI ; FS330-14 CI

Technical Data

Cover
Top cover diameter: 231mm
Bottom cover diameter: 231mm

Air hole/Gas hole
Air hole: G1

Threaded hole/screw thread
Center distance between threaded holes in top cover: 157.5mm
Distance from air hole to threaded hole in top cover: 66mm
Center distance between threaded holes in bottom cover: 157.5mm

Rubber bellow

The rubber bellow max outer diameter: 325mm

Max height: 166mm

Min.height: 55mm

Vibration isolation – dynamic characteristic values

Design height H: recommended 140mm, minimum 120mm

Pressure p	bar	3	4	5	6	7	8	VoI.V(I)
Force (Load)	kN	11.6	15.5	19.5	23.4	27.4	31.8	7.4
Spring rate	N/mm	261	332.2	409.4	486.5	486.5	567.8
Natural frequency	Hz	2.4	2.3	2.3	2.3	2.3	2.2

Pneumatic application – static characteristic values
Force F [kN]

Pressure P	bar	3	4	5	6	7	8	Vol.V(I)
Height H (mm)	151	10	13.3	16.8	20.3	24	27.6	7.8
	130	12.6	17	21.4	26	30.2	34.8	7
	110	14.8	19.8	25	30	35.2	40.2	6.1
	90	16.2	21.8	27.4	33	38.6	44.2	5
	70	17.2	23	28.8	34.9	40.6	46.6	3.9
