FT 530-35 521 Contitech Triple Convoluted Air Spring W01-358-7845 Firestone Inflatable Airbag
Product Description
Item Name: Rubber Air Spring
Brand: GUOMAT
GUOMAT NO.: 3B7845
Material: Rubber and Galvanizing
Warranty: 1 Year
MOQ: 1 pcs
Car Model: Universal
Application: Car Air Suspension
Function: Lifting
Delivery Time: 3-7 Working Days
Payment: T/T,Western Union, Paypal
Shipment: FedEx,UPS,DHL,EMS...
Technical Data
| Top Cover Plate Diameter: 11.31'' |
| Bottom Cover Plate Diameter: 11.31'' |
| Gas Hole / Air inlet: 1/4-18NPTF |
| Rubber Bellows MAX Diameter: 15.90'' |
| Rubber Bellows Natural Diameter: |
| The Max. Height: 20.12'' |
| The Min. Height: 1.49'' |
| Top Cover Plate Screw (Nut) Tooth: 4x3/8-16UNC |
| Bottom Cover Plate Screw (Nut) Tooth: 4x3/8-16UNC |
| Screw Center Distance of Top Cover Plate: 6.25'' |
| Screw Center Distance of Bottom Cover Plate: 6.25'' |
| Screw And Gas Hole Distance of Top Cover Plate: 3.125'' |
OEM Number / Cross Reference Number
Contitech Part Number: FT530-35 521
Contitech Part Number: FT 530-35 521
Contitech Bellows Number: FT530-35
Contitech Bellows Number: FT 530-35
Firestone Part Number: W01-358-7845
Firestone Part Number: W01 358 7845
Firestone Part Number: W013587845
Firestone Style: 333
Goodyear Part Number: 3B14-450
Goodyear Part Number: 3B 14-450
Goodyear Flex Number: 556338335
Goodyear Flex Number: 556 33 8 335
Goodyear Flex Number: 556-33-8-335
Automann Part Number: SP3B32RA-7845
FleetPride Part Number: AS7845
Taurus Part Number: 6335
Triangle Part Number: AS-4521
TRP Part Number: AS78450
About Us
Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min’s drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
FAQ
|
1. Are you a Manufacture factory?
Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 12years experience from 2008 years.
|
|
2. What is your main products?
Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
|
|
3. Is the sample available?
Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 3 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
|
|
4. What is your warranty term?
Our company offer 1% free spare parts to FCL order.There is a 12months warranty for our export products has run out from the date of the shipment.If warranty ,our customer should pay for the replacement parts.
|
|
5. Can i use my own logo and design on products?
YES,OEM is welcomed.
|
|
6. I can not find out the items what i want from your website, can you offer the products i need?
YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
|

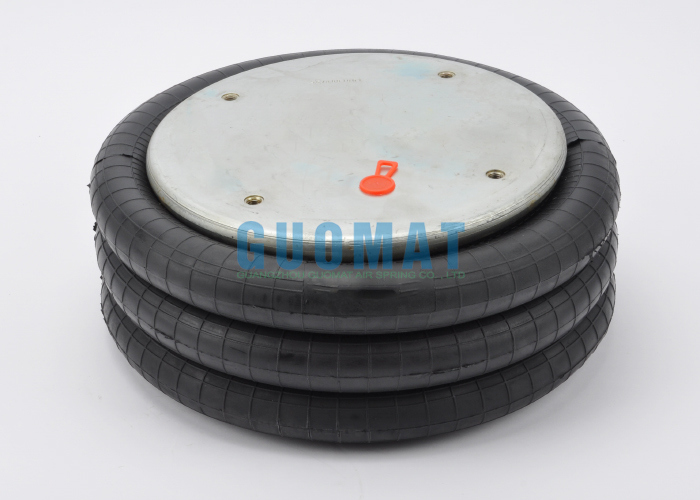

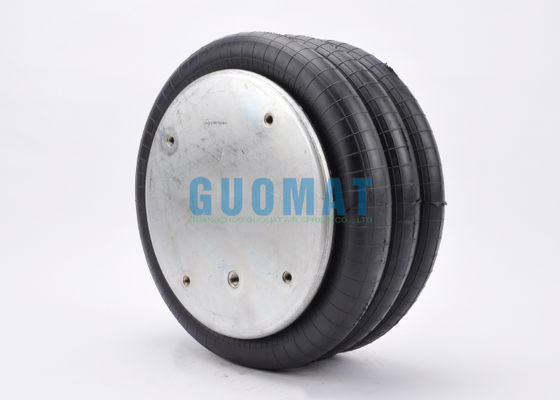

The Real Picture
