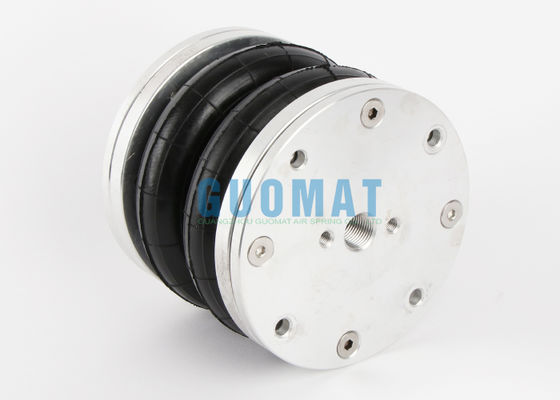

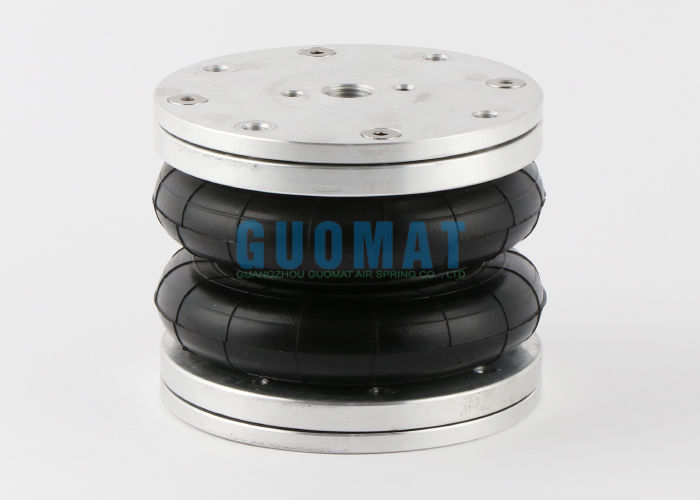

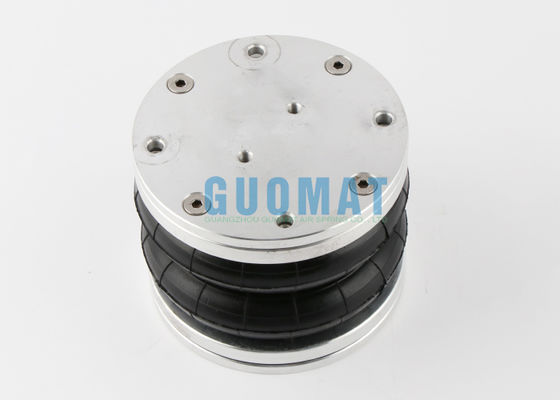

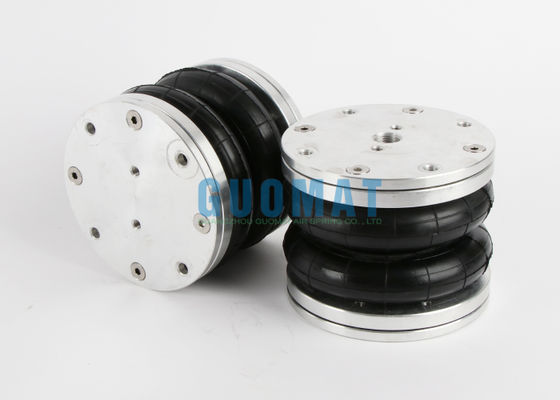

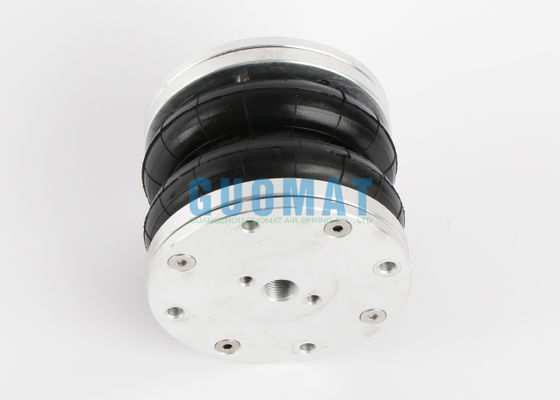

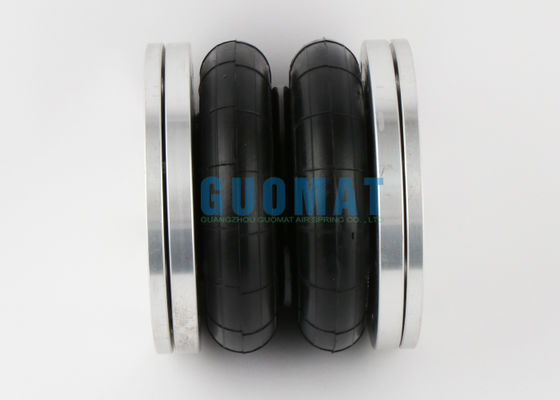

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Détails sur le produit:

Lieu d'origine:	Guangzhou, Chine
Nom de marque:	GUOMAT
Certification:	ISO/Ts16949:2009
Numéro de modèle:	Les éléments suivants sont utilisés:

Conditions de paiement et expédition:

Quantité de commande min:	6pcs
Prix:	$89.9-99.9/pc
Détails d'emballage:	Emballage en carton ou selon les exigences du client
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	L / C, T / T, Western Union
Capacité d'approvisionnement:	10 000 par semaine

Contact

Description de produit détaillée

Matériau de printemps:	Caoutchouc naturel	Qualité:	100% testé
Cotisation:	Réduire le choc	Garantie:	12 mois
Taper:	Ressort d'air alambiqué	Contitech:	Fd 76 à 14
Couleur:	Noir	Norgren:	PM/31062
Mettre en évidence:	Norgren air spring bellows , Firestone industrial air spring , aluminum air spring bellow

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Product Attributes

Attribute	Value
Spring Material	Natural Rubber
Quality	100 % Tested
Fuction	Reduce Shock
Warranty	12 Months
Type	Convoluted Air Spring
Contitech	FD 76-14
Color	Black
Norgren	PM/31062

Product Description

PM/31062 Norgren Air Bags W01-R58-4070 Firestone Industrial Air Spring Bellows 6''X2 Aluminum Part

Specifications and Detail Technical Parameters

Weight: 2.1 kg
G1/2: max. 25 Nm
M8: max. 12 Nm
Nut/Blind Nut
Top cover screw (nut) teeth: 4 X M8
Bottom cover screw (nut) teeth: 4 X M8
Air vent / air inlet: G1/2
Top cover diameter (width): 153.5 mm
Bottom cover diameter (width): 153.5 mm
Material top and bottom plate: aluminum
Maximum diameter 7 bar: 175mm
Rubber bellows stroke: 80mm-195mm
Girdle Hoop: a belt hoop
Maximum load is 80 mm height and 8 bar: 1415 daN

Pneumatic Application - Static Characteristic Values

Height H(mm)	Forcr F (kN)						Vol V(I)
Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
160	2.28	3.52	4.5	5.5	6.54	7.6	2
140	3.3	4.46	5.64	6.84	8.07	9.33	1.7
120	3.88	5.21	6.57	7.96	9.38	10.8	1.5
100	4.59	6.16	7.76	9.4	11.1	12.8	1.2

OE Manufacturer Number

Continental ContiTech: FD 76-14 1/2 M8
Continental ContiTech: FD 76-14 D1 G1/2
Continental ContiTech: FD 76-14 Dl G1/2 M8
Continental ContiTech: FD 76-14 DI G1/2 CR
Continental ContiTech: FD 76-14 DI CR G1/2
Continental ContiTech: FD 76-14 DICR / FD76-14DICR / FD7614DICR
Continental ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Firestone No.: W01-R58-4070 / W01 R58 4070 / W01R584070
Firestone Style: 6"x2
Dunlop FR: 6"x2 SP1646 (COMPOSITE)
Dunlop FR: 6"x2 SP2917 (ALUMINIUM)
Dunlop UK (Pneuride):A31330 02 01/A313300201
Norgren: PM/31062/PM 31062/PM31062
Nominal 0 (inch) x convolutions: 6"x2 / 6"x2 / 6x2
Parker: 6"x2 9109001A
YS-AIR: YS-160-2VS / YS 160 2VS / YS1602VS
