W01-358-6940 Firestone Suspension Air Spring 2B9-230 Goodyear Airide Replacement Air Bags

Détails sur le produit:

Lieu d'origine:	Canton Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Numéro de modèle:	2B6940

Conditions de paiement et expédition:

Quantité de commande min:	5 pièces
Prix:	USD59.9-69.9/PC
Détails d'emballage:	Boîte à carton forte ou en tant que clients
Délai de livraison:	3-7 jours ouvrables
Conditions de paiement:	L / C, T / T, Western Union ou autres
Capacité d'approvisionnement:	1000pcs / semaine

Contact

Description de produit détaillée

Capacité de pression:	PA DE 0.2-0.8 M	Forfait Transport:	Cartons
Matériel:	Caoutchouc et acier	Garantie:	12 mois
Convolutions:	2	Firestone:	W01-358-6940
Goodyear:	2B9-230	Accident vasculaire cérébral:	81mm-274mm
Mettre en évidence:	Firestone Suspension Air Spring replacement , Goodyear Airide air bags , 2B9-230 air spring

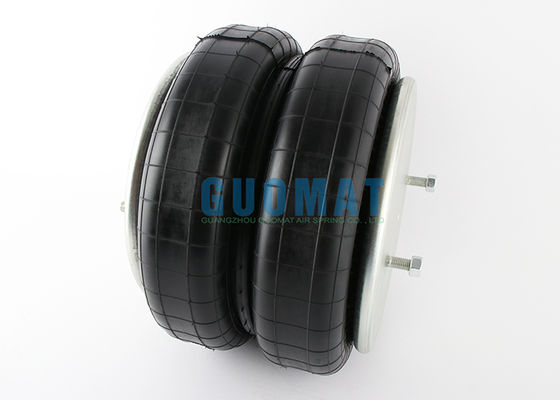

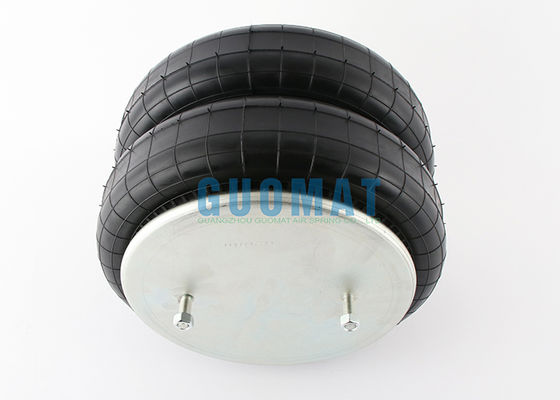

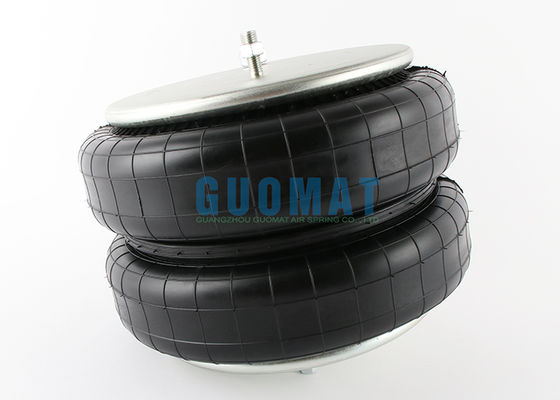

W01-358-6940 Firestone Suspension Air Spring 2B9-230 Goodyear Airide Replacement Air Bags

W01-358-6940 Firestone Suspension Air Spring 2B9-230 Goodyear Airide Replacement Air Bags

Manufacturer Cross OEM Reference

Firetsone Part Number: W01-358-6940 / W01 358 6940 / W013586940

Contitech Part Number: FD200-19 450 / FD 200-19 450

Contitech Part Number: 161296

Goodyear Part Number: 2B9-230 / 2B 9-230 / 2B9 230

Goodyear Bellows Number: 578923202 / 578 92 3 202 / 578-92-3-202

Triangle Part Number: 6325 / 4450

Histeer: 10305

Taurus: 6325

Triangle: AS-4450

TRP: AS69400

Loadguard: SC3762 / SC 3762

Loadguard: SC2035 / SC 2035

Fabio: 2DC-220-35C

Technical Data

The cover plate diameter: 160mm

Max.height: 274mm

Min.height: 81mm

The rubber bellows max.outer diameter: 251mm

Center distance between bottom bolts: 89mm

Working Principle of Air Springs in Paper Filter Press

Component Role	Working Process	Core Action
As a Pressure Source	Compressed air is fed into the air springs mounted on a fixed roll core.	Inflate & Expand to apply uniform outward pressure against the rotating roll shell.
As a Pressure Regulator	The control system independently adjusts the air pressure in springs across multiple zones along the roll length.	Zone Pressure Control to precisely manage the load at different points across the roll face.
As a Deflection Compensator	Automatically increases the pressure in the center zone springs to counteract the roll's natural bending under load.	Compensate Deflection to ensure a uniform pressure profile across the entire sheet for even dewatering.
As a Shock Absorber	When encountering sheet splices or thickness variations, the air springs compress to absorb the impact.	Cushion & Dampen vibrations, protecting the equipment and ensuring stable operation.
