FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Numéro de modèle:	3B14.5X3T

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	négociable
Détails d'emballage:	Boîte à carton forte ou en tant que clients
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	L / C, D / A, D / P, Western Union
Capacité d'approvisionnement:	1000pcs / semaine

Contact

Description de produit détaillée

Garantie:	Un an	Vis (Écrou):	M10
Forfait Transport:	Cartons	Marque déposée:	Guomate
Fonction:	Réduire les vibrations	Contitech:	FT 614 à 36 DS
Zones de feu:	W01R584065	Soufflets non.:	14''1/2X3
Mettre en évidence:	Contitech industrial air spring , Triple convoluted rubber bellows , 14.5x3 air spring bellow

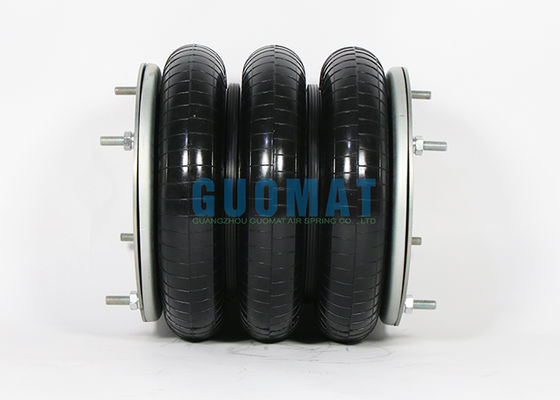

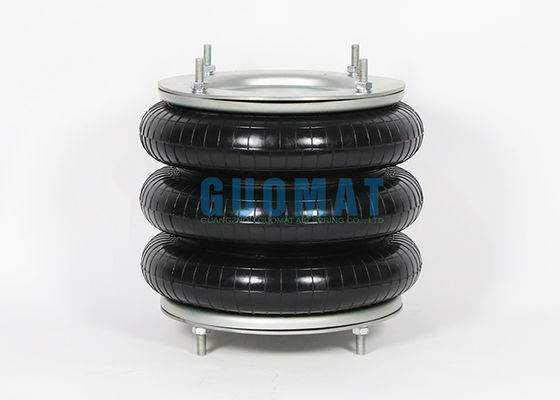

FT 614-36 DS Contitech Industrial Air Spring 14''1/2X3 Triple Convoluted Type Rubber Bellows

Product Introduction

Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

Brand: GUOMAT

Model Number: 3B14.5X3T

Material: Rubber and Steel

Warranty: 1 Year

Compatible Replacement Parts

Continental ContiTech: FD 614-36 DS 68047

Continental ContiTech: FD 614-36 1/2 M10

Continental ContiTech: FD 614-36 DS G1/2

Continental ContiTech: FD 614-36 DS G1/2 M10

Continental ContiTech: FD 614-36 DS / FD614-36DS / FD614 36DS

Continental ContiTech Bellow: FD 614-36/FD314-36/FD31436

Firestone No.:W01-R58-4065/W01R58 4065/W01R584065

Firestone No.: W01-R58-4065/W01R58 4065/W01R584065

Firestone Style:14"1/2x2/14"1/2x2/14.5x2

Dunlop FR: 14"1/2 x2 SP1558

Norgren: M/31143/M 31143/M31143

NominalØ (inch)x convolutions: 14"1/2x2/14"1/2x2/14.5x2

Parker: 14''1/2x2 9109069

Technical Data

Specification	Value
Maximum Height	480mm
Minimum Height	100mm
Cover Plate Diameter	310mm
Bolts	M10
Air Fitting	G1/2
Center Distance Between Bolts	282.5mm
Maximum Outer Diameter	400mm

Height H(mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol V(I)
400	13.3	18	22.8	27.9	33.3	38.9	28
420	11.8	16	20.4	25	30.1	35.3	28
350	16.7	22.4	28.2	34.2	40.5	46.9	25
300	19.4	26	32.5	39.3	46.3	53.5	22
250	21.8	29	36.4	43.8	51.7	60.5	18
200	24.7	32.9	41.1	49.6	58.5	67.4	14
150	27.6	36.6	45.7	55	64.6	74.2	10

Air Spring Features

Structure: It typically consists of a flexible rubber bladder filled with compressed air (called the "air bladder") and two metal components (called the "upper cover" and the "piston" or "lower cover").

Working Principle: When the external load increases, the air inside the air bladder is compressed, increasing the pressure and thus providing greater support. When the load decreases, the air expands, and the pressure decreases. Its stiffness and height can be precisely controlled by adjusting the internal air pressure.

Main Functions: Vibration isolation, shock absorption, support, and height adjustment.
