S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Numéro de modèle:	Le F-300-4

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	négociable
Détails d'emballage:	Boîte à carton forte ou en tant que clients
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	L / C, D / A, D / P, Western Union
Capacité d'approvisionnement:	1000pcs / semaine

Contact

Description de produit détaillée

Structure:	Quadra enroulé	Qualité:	100% testé
Cotisation:	Réduire le choc	Marque déposée:	Guomate
Service après-vente:	12 mois	Température de travail:	-40 ℃ + 70 ℃
Je vous en prie!:	S-300-4R	Couleur:	Noir
Mettre en évidence:	Yokohama industrial air spring , 206mm natural height air spring , air rubber spring with waist ring

S-300-4R YOKOHAMA Industrial Air Spring 206mm Natural Height Air Rubber With Waist Ring

Part Number
AIRSUSTECH Part No.: F-300-4
YOKOHAMA S-300-4R
YOKOHAMA S 300 4R
YOKOHAMA S-300-4

Product Application

Automation technology
Conveyor systems
Agricultural machinery
Food industry
Paper and textile equipment
Pantograph drives
Sawmill machinery
Punch and forming presses
Bellow paper machine equipment

GUOMAT \| YOKOHAMA	Height H (mm)	Common Max.Stroke	Compression Max OD	Approximate values at standard height and internal pressure of 0.49 MPa	Use maximum internal pressure
F-300-4 \| S-300-4	206	326	111	±80	360
F-300-3 \| S-300-3	152	242	82	±60	360
F-300-2 \| S-300-2	98	158	53	±40	360
F-300-1 \| S-300-1	72	117	40	±30	400

Advantages Compared to Mechanical Springs

Constant pressure: Within its stroke range, air springs provide a very stable force, while the force of a mechanical spring varies with compression.
Adjustable pressure: Output force can be easily changed by simply adjusting the intake pressure, adapting to different molds and processes.
Long stroke: Compared to a mechanical spring of the same size, air springs have a longer effective working stroke.
Long lifespan: High-quality air springs can last for millions of cycles, far exceeding the lifespan of mechanical springs.
Flexible installation: Compact design, easy to arrange in molds.

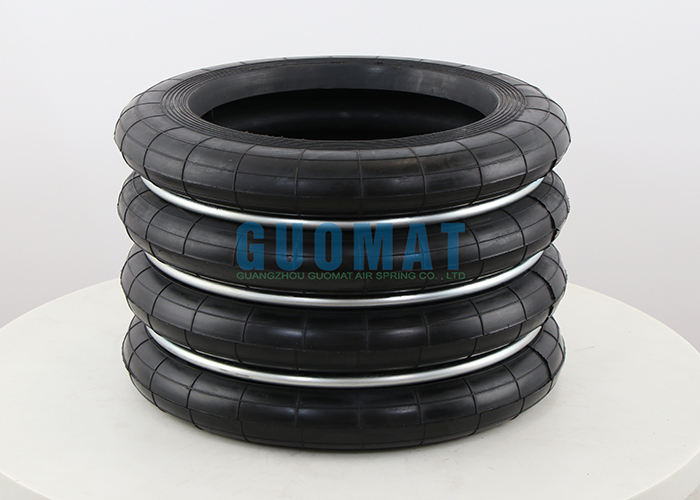

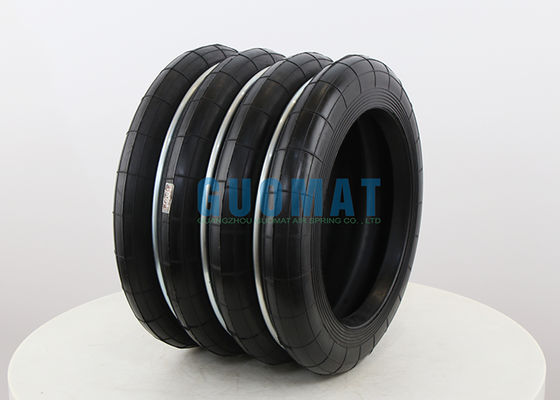

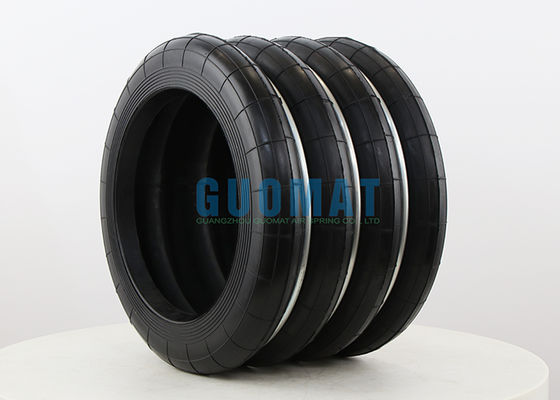

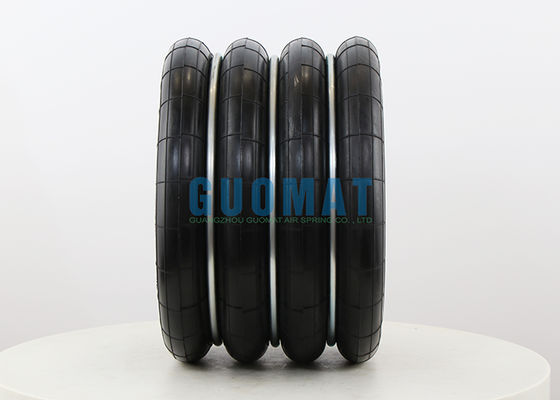

Product Images
