W01-358-9079 Firestone Air Spring 1T15M-6 Suspension Rubber Air Bags

Détails sur le produit:

Lieu d'origine:	GUANGZHOU, CHINE
Nom de marque:	GUOMAT
Certification:	ISO/TS16949:2009
Numéro de modèle:	1T99079

Conditions de paiement et expédition:

Quantité de commande min:	5 pièces
Prix:	USD79.9-99.9/PC
Détails d'emballage:	Boîte en carton solide ou comme exigence des clients
Délai de livraison:	3-7 jours ouvrables
Conditions de paiement:	LC, T/T, Western Union ou autres
Capacité d'approvisionnement:	1000 pièces/semaine

Contact

Description de produit détaillée

Matériau du ressort:	Caoutchouc+Acier	Qualité:	100% testé
Ressort pneumatique:	Isolateur de ressort d'air	Essai d'échec:	Plus de 3 millions
Garantie:	1 an	Position:	Suspension aérienne de camion
Pierre de feu:	W01-358-9079	MOQ:	5 pièces
Mettre en évidence:	Firestone air spring suspension bags , Truck air springs with rubber , Firestone 1T15M-6 air bags

W01-358-9079 Firestone Air Spring 1T15M-6 Suspension Rubber Air Bags

Product Details

Item	Air Spring/Shock Absorber Spring/Air Bellows
Brand	GUOMAT
Model NO.	1T9079
Material	Rubber and Steel
Warranty	1 Year
MOQ	10 PCS If We Have Stock
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	2-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring, Convoluted Air Spring, Industrial Air Springs, Air Suspension Spring, Air Compressor, Air Valve, Bus Rubber Bellows, Truck & Trailer Air Bags, Cabin Air Shock, Electric Water Pump

Replacement Part Numbers

Firestone Style 1T15M-6
Firestone W01-358-9079
Firestone W01 358 9079
Firestone W013589079

Technical Specifications

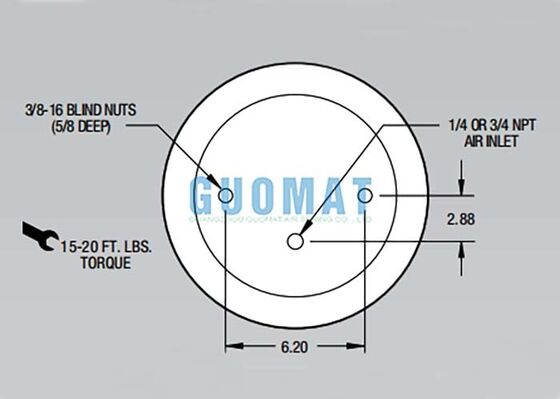

Dimensions

Top cover diameter: 9 inches

Threaded holes: 3/8-16 inches

Center distance between two threaded holes: 6.2 inches

Air vent: 1/4 NPT

Distance between air vent and threaded hole: 2.88 inches

Base width: 10.25 inches

Threaded holes: 1/2-13 inches

Center distance between threaded holes: 7.88 inches

Base height: 4.56 inches

Design height: 14.0 inches

Minimum height: 7 inches

Maximum height: 22 inches

Performance Data - Volume @ 80 PSIG = 20 in³

Gage Pressure (PSIG)	Load (lbs.)	Spring Rate (lbs./in.)	CPM	HZ
40	2730	395	71	1.19
60	4130	541	68	1.13
80	5590	707	67	1.12
100	7030	852	65	1.09

Assembly Height and Force Data

Assembly Height (in.)	Volume @ 100 PSIG (in³)	Pounds Force
		@20PSIG	@40PSIG	@60PSIG	@80PSIG	@100PSIG
18	1274	1100	2220	3420	4670	5980
16	1134	1290	2640	4000	5410	6840
14	987	1330	2730	4130	5590	7030
12	841	1330	2710	4170	5590	7010
10	693	1380	2790	4270	5730	7240
8	533	3060	3060	4670	6280	7950

Firestone Style 1T15M-6 Compatible Parts

Blind nuts, 1/4NPT: W01-358-9079 / W01 358 9079 / W013589079
Blind nuts, 1/4NPT, bumper: W01-358-9096 / W01 358 9096 / W013589096
Blind nuts, 3/4NPT: W01-358-9089 / W01 358 9089 / W013589089
Blind nuts, 3/4NPT, bumper: W01-358-9088 / W01 358 9088 / W013589088
Bind nuts, 3/4NPT (piston not included): W01-358-0730 / W01 358 0730 / W013580730
