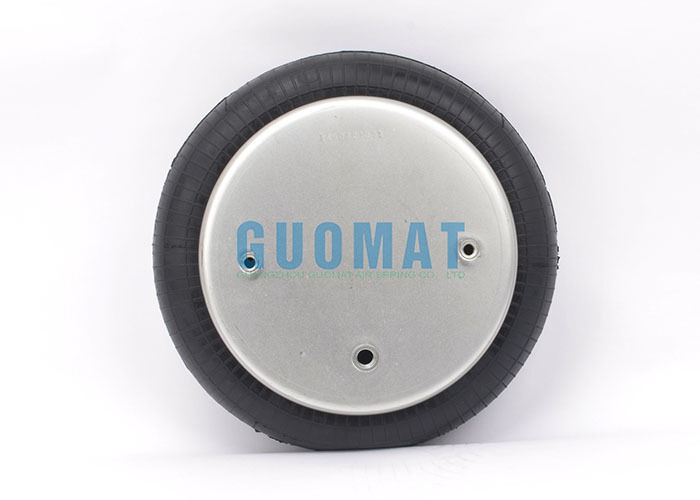

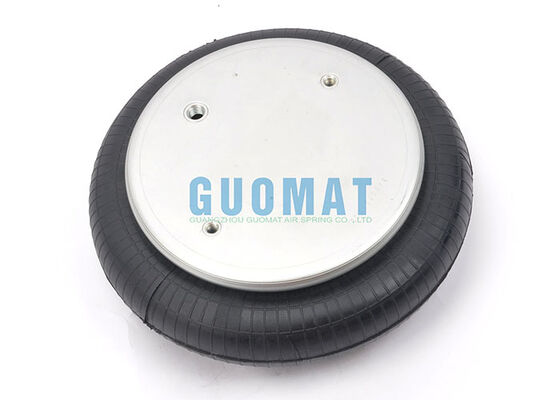

Contitech Single Convoluted Air Spring FS 330-11 468 Air Bags For Corrugated Cardboard Equipment
GUOMAT air springs are engineered to deliver exceptional vibration isolation, reliable load support, and superior ride comfort for industrial equipment and vehicle suspension systems. Built with durable rubber construction and proven performance, GUOMAT products serve as high-quality replacement solutions for trucks, buses, trailers, RVs, and industrial machinery applications.
Product Specifications
- Brand: GUOMAT
- Model Name: 1B5330
- Type: Single Convoluted Type
- Material: Rubber and Steel
- Warranty: 12 Months
Compatible Part Numbers
Contitech FS330-11 468
Contitech FS 330-11 468
Firestone Style 19
Firestone W013587009
Firestone W01-358-7009
Firestone W01 358 7009
Goodyear 1B12-301
Goodyear 1B 12-301
Goodyear Flex No.578-91-3-301
Goodyear Flex No.578 91 3 301
Goodyear Flex No.578913301
Taurus 6374
Triangle As-4468
TRP AS70090
Automann SP1B22A-7009
| SAF Holland |
90557002 |
| Ridewell |
1003587009C |
Technical Specifications
| Top cover diameter |
231mm |
| Top cover threaded holes |
2pcs x 3/8-16UNC |
| Center distance between top cover threaded holes |
157.5mm |
| Bottom cover diameter |
231mm |
| Bottom cover threaded holes |
2pcs x 3/8-16UNC |
| Center distance between bottom cover threaded holes |
157.5mm |
| Buffer block |
With |
| Maximum outer diameter |
325mm |
| Maximum height |
160mm |
| Minimum height |
68mm |
Performance Benefits for Corrugated Cardboard Machinery
The GUOMAT 1B5330 industrial air spring is specifically designed for corrugated cardboard production equipment, delivering superior vibration isolation, stable load support, and precise pressure control during high-speed operations. In modern corrugated board manufacturing lines where machinery operates continuously under heavy loads and constant vibration, reliable suspension and shock absorption components are critical for maintaining product quality and equipment reliability.
When installed in corrugated cardboard machinery, the 1B5330 air spring effectively reduces vibration generated by rollers, motors, and moving mechanical structures. By absorbing shocks and minimizing machine resonance, it protects sensitive components from excessive wear and mechanical fatigue. This enhancement not only improves operational stability but also extends the service life of bearings, shafts, and transmission systems.
A key advantage of the GUOMAT 1B5330 air spring is its ability to maintain smooth, balanced pressure throughout the cardboard forming and conveying processes. Consistent suspension performance ensures uniform contact pressure between rollers and paper layers, improving corrugated board flatness while reducing production defects caused by uneven vibration or sudden impacts.
Compared to traditional metal spring systems, the 1B5330 air spring offers superior flexibility, quieter operation, and enhanced damping performance. Its high-quality rubber construction with reinforced cord layers provides exceptional durability and air tightness, enabling continuous operation in demanding industrial environments with minimal maintenance requirements.
With reliable load-carrying capacity and efficient vibration isolation performance, the GUOMAT 1B5330 air spring represents an ideal solution for corrugated cardboard machinery, helping manufacturers improve production efficiency, reduce downtime, and maintain consistent product quality throughout the manufacturing process.
