215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings

215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings

  • 215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings
  • 215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings
  • 215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings
215 Double Air Bellow W01-358-7230 Firestone Air Spring Ribbed Neck Aluminum Bead Rings
Détails sur le produit:
Lieu d'origine: Guangdong, Chine
Nom de marque: GUOMAT
Certification: ISO/TS16949:2009
Numéro de modèle: 2H7230
Conditions de paiement et expédition:
Quantité de commande min: 6 pièces
Prix: négociable
Détails d'emballage: Boîte en carton solide ou selon les besoins des clients
Délai de livraison: 2-8 jours ouvrables
Capacité d'approvisionnement: 1000 pièces/semaine
Contact
Description de produit détaillée
Garantie: 12 mois Convolutions: 2
Emballage: Emballage neutre Mots-clés: Ressort pneumatique à double convolution
Matériel: Caoutchouc et acier Couleur: Noir
Nom du produit: Ressort pneumatique alambiqué MOQ: 6 pièces
Mettre en évidence:

Firestone air spring ribbed neck

,

215 double air bellow suspension

,

aluminum bead rings air spring

215 Double Air Bellow W01-358-7230 Firestone Air Spring
GUOMAT 2H7230 is a heavy-duty double convoluted rubber air spring designed as a direct replacement for Firestone W01-358-7230 (Style 215). Featuring a high-strength double bellow construction, ribbed neck aluminum bead rings, and premium natural rubber materials, this air spring delivers outstanding load support, vibration isolation, and shock absorption performance in demanding industrial applications.
Manufactured to match the mounting dimensions and operating characteristics of Firestone Style 215 air springs, the GUOMAT 2H7230 provides a reliable and cost-effective alternative for equipment maintenance and replacement projects. It is suitable for heavy industrial machinery, vibration isolation systems, die cushions, material handling equipment, and other pneumatic applications requiring large load capacity and stable performance.
Product Specifications
Brand GUOMAT
Type Rubber Air Spring
Model 2H7230
Maximum Diameter @ 100 PSIG 27.9 inches
Maximum Height 12.1 inches
Maximum Stroke 8.6 inches
Minimum Usable Height 3.5 inches
Design Height 10.5 inches
Material 2-Ply, High Strength Cord
Bead Ring Type 4
Bolt Circle Diameter 23.5 inches
Number of Bolts (each ring) 32
Force Performance @ 80 PSI
Force at Stroke of 1 Inch 42,500 pounds
Force at Stroke of 3 Inches 40,000 pounds
Force at Maximum Stroke 28,160 pounds
Load Capacity at Design Height
Load at 40 psig 15,840 pounds
Load at 60 psig 24,140 pounds
Load at 80 psig 32,550 pounds
Vibration Isolation Performance
Natural Frequency (@80 psig) 86 cpm
Isolation at 400 CPM 95.1%
Isolation at 800 CPM 98.8%
Isolation at 1500 CPM 99.7%
OEM Cross-Reference Numbers
Firestone Style 215 - Ribbed Neck Aluminum Bead Rings
Equal spacing, 17/8" bolts, nuts, washers:
W01-358-7230 / WO1-358-7230
W01 358 7230 / WO1 358 7230
W013587230 / WO13587230
Unequal spacing, 17/8" bolts, nuts, washers:
W01-358-7301 / WO1-358-7301
W01 358 7301 / WO1 358 7301
W013587301 / WO13587301
Equal spacing, 11/4" bolts, nuts, washers:
W01-358-7302 / WO1-358-7302
W01 358 7302 / WO1 358 7302
W013587302 / WO13587302
Rubber bellows only:
W01-358-7912 / WO1-358-7912
W01 358 7912 / WO1 358 7912
W013587912 / WO13587912
Applications
  • Industrial vibration isolation systems
  • Die cushion equipment
  • Press machines
  • Material handling equipment
  • Pneumatic actuators
  • Heavy machinery suspension systems
  • Mining and processing equipment
  • Automation and manufacturing machinery

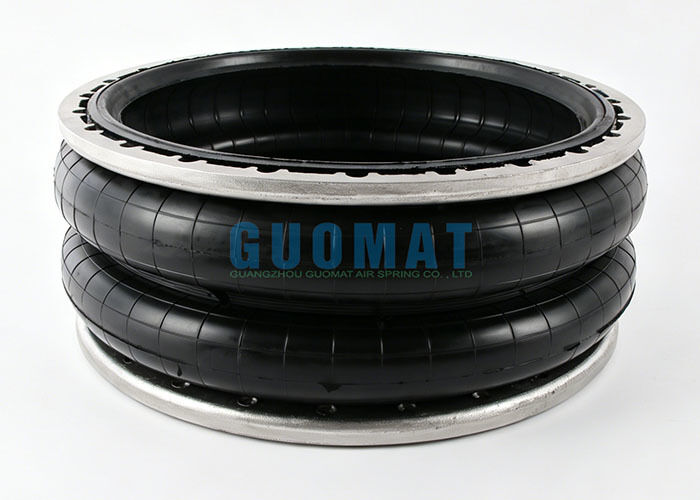

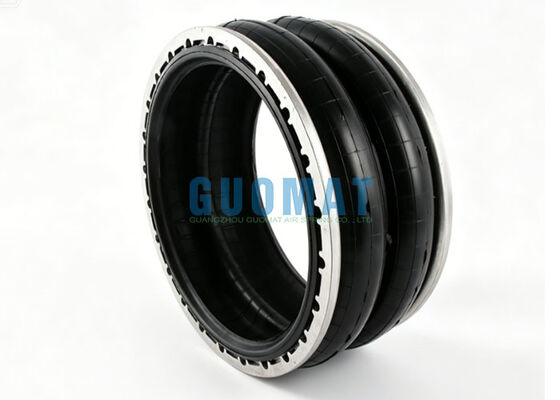

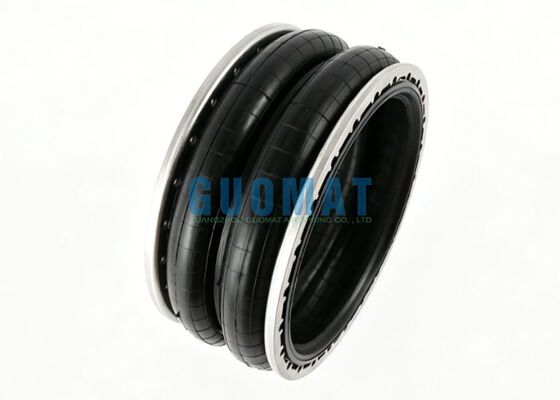

GUOMAT 2H7230 Double Air Bellow Firestone Air Spring with ribbed neck aluminum bead rings
