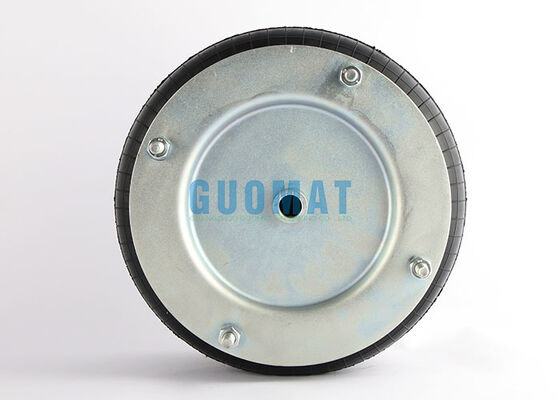

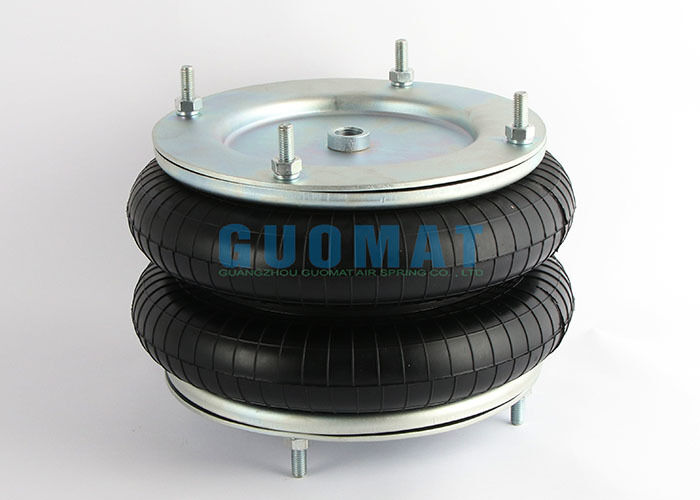

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring For Tooling Equipment

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949:2009
Numéro de modèle:	2B16X2T

Conditions de paiement et expédition:

Quantité de commande min:	6 pièces
Prix:	négociable
Détails d'emballage:	Boîte en carton solide ou selon les besoins des clients
Délai de livraison:	2-8 jours ouvrables
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement:	1000 pièces/semaine

Contact

Description de produit détaillée

Température de travail:	-40 ℃ + 70 ℃	Modèle:	Airbags enroulés
Référence croisée:	Contitech FD816-30	Offre spéciale garantie:	1 an
Usage:	Industriel	Nombre de convolutions:	Double
Nombre de soufflet:	16x2	Pierre de feu:	W01R584067
Mettre en évidence:	Firestone air spring double convoluted , 16 inch rubber air spring , air bellow for tooling equipment

16" x 2 Firestone Air Bellows W01R584067 Double Convoluted Rubber Air Spring

Designed for tooling equipment, this double convoluted rubber air spring provides reliable performance and durability.

Product Overview

The GUOMAT 2B16X2T air spring is manufactured with high-quality materials and superior craftsmanship, serving as a complete replacement for the Firestone W01R584067.

This product uses high-toughness natural/synthetic composite rubber and imported cord reinforcement materials, adhering to ISO international quality standards. Fully compatible with the original Firestone W01R584067 in interface dimensions, working stroke, and rated load capacity, making it ideal for bus suspensions, commercial vehicle cab vibration damping, and industrial equipment vibration isolation.

Product Specifications

Product Name	Flange Air Spring
Brand	GUOMAT
Model No.	2B16x2T
Convolutions	2
Warranty	1 Year
Material	Rubber and Steel

Compatible OEM Numbers

Firestone Style: 16''X2, 16X2
Firestone Number: W01R584067, W01 R58 4067, W01-R58-4067
Dunlop Number: SP1557
Contitech Number: FD816-30DS, FD 816-30DS, FD 816-30 DS
Norgrem Number: M/31162, M 31162, M31162
Parker Number: 9109171

Technical Specifications

Air port inlet	G1/2
Rec/Max pressure	5,5/8 bar
Force(N)@0 bar to H(mm)	120(80)
Weight	9.70KG
Max. outer diameter	440mm
Min. height	75mm
Max. height	325mm
Recommended height	300mm
