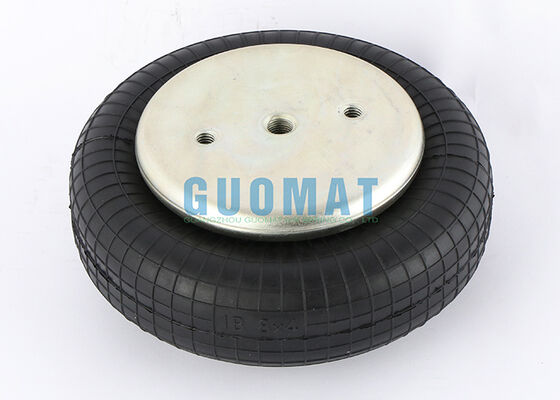

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	GUOMAT
Certification:	ISO/TS16949:2009
Numéro de modèle:	1B8X4

Conditions de paiement et expédition:

Quantité de commande min:	6 pièces
Prix:	US$49.9-59.9/PC
Détails d'emballage:	Boîte en carton solide ou selon les besoins des clients
Délai de livraison:	3-7 jours ouvrables
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement:	1000 pièces/semaine

Contact

Description de produit détaillée

Nom de l'article:	Ressort pneumatique industriel	Condition:	Tout neuf
Dimensions de la boîte:	16168 cm	Diamètre de la plaque supérieure:	135 millimètres
Trou d'aération:	1/4 NPTF	Position:	Machine industrielle
Poids:	2 kg	Bonne année:	1B8-550
Mettre en évidence:	Goodyear industrial air spring , Firestone precision air spring , industrial isolation system air spring

1B8-550 Goodyear Industrial Isolation System W01-358-7564 Firestone Precision Air Spring

The GUOMAT 1B8X4 industrial vibration-isolating air spring is a single-convoluted industrial air actuator designed for shock absorption, vibration isolation, and precision control applications in industrial equipment. Featuring a composite structure of a high-strength rubber bellows and steel end caps, it utilizes compressed air to provide elastic support, effectively reducing vibration, shock, and noise generated during mechanical operation and enhancing equipment stability.

Product Specifications

Brand: GUOMAT

Model Name: Industrial Air Spring

Model No.: 1B8X4

Material: Rubber and Steel

Warranty: 1 Year

Corresponding OEM Numbers

Firestone Numbers:

W01-358-7600 / WO1-358-7600
W01 358 7600 / WO1 358 7600
W013587600 / WO13587600
W01-358-7564 / WO1-358-7564
W01 358 7564 / WO1 358 7564
W013587564 / WO13587564

Goodyear Numbers:

1B8-550
1B 8-550
1B8 550

Contitech Numbers:

FS120-10
FS 120-10
FS 120-10 CI 1/4 NPT

Technical Data

Dimensions

Cover plate diameter: 135mm

Threaded hole: 3/8-16UNC

Air port: 1/4NPTF

Center-to-center distance: 70mm

Maximum outer diameter: 230mm

Performance Data

Pressure P (bar)	3	4	5	6	7	8	Vol.V(I)
Force(Load) (kN)	4.8	6.6	8.2	9.9	11.6	13.3	2
Spring rate (N/mm)	132	170	209	242	277	316
Natural frequency (Hz)	2.7	2.7	2.6	2.6	2.5	2.5

Height vs Pressure Data

Height H (mm)	3 bar	4 bar	5 bar	6 bar	7 bar	8 bar	Vol.V(I)
120	4.2	5.6	7.2	8.4	10.2	11.7	2.1
110	4.8	6.6	8.2	9.9	11.6	13.4	2
100	5.6	7.4	9.2	11.2	13.1	15	1.8
90	6	8	10.1	12.2	14.2	16.4	1.6
80	6.5	8.6	10.9	13.2	15.3	17.6	1.4
70	6.8	9.2	11.4	13.8	16.1	18.4	1.3
60	7.1	9.4	12	14.4	16.6	19.2	1.1
