159mm 2B9-240 Goodyear Air Spring W013587119 MCI 12C-1-36 Prevost 63-0166

Détails sur le produit:

Lieu d'origine:	Guangdong, Chine
Nom de marque:	Goodyear
Certification:	ISO/TS16949:2009
Numéro de modèle:	2B9-240

Conditions de paiement et expédition:

Quantité de commande min:	Négociable
Prix:	négociable
Détails d'emballage:	boîte forte de carton ou comme besoin de clients
Délai de livraison:	2-8 jours de travail
Conditions de paiement:	T/T, Western Union, Paypal ou d'autres
Capacité d'approvisionnement:	1000pcs/week

Contact

Description de produit détaillée

matériel:	Couvercle en acier, soufflets en caoutchouc	Goodyear:	2B9-240
Trou de gaz:	1/2NPTF	Boulon ou goujon:	1/2-13 ou 1/2-20
Distance centrale de vis:	159 millimètres	Diamètre de couvercle:	180 millimètres
Capacité de pression:	PA de 0.2-0.8 M	Course:	75~260 millimètres
Poids net:	3,35 kilogrammes	Taille de paquet:	242424 CM
Mettre en évidence:	2B9-240 Goodyear Air Spring , W013587119 , 159mm Goodyear Air Spring

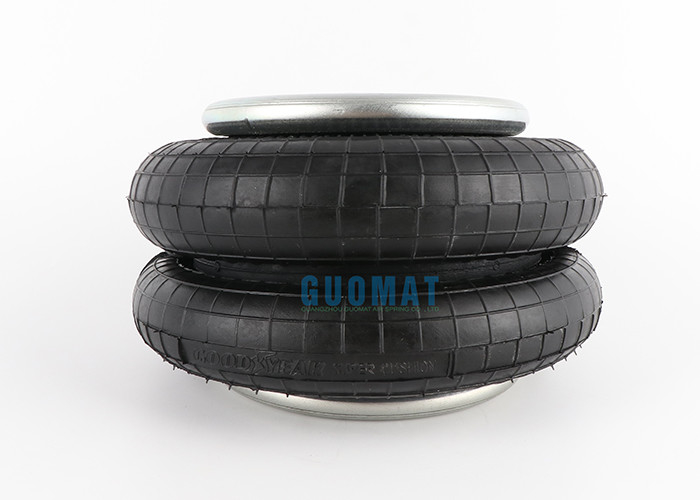

2B9-240 Goodyear Air Spring IRESTONE W013587119 MCI 12C-1-36 PREVOST 63-0166

2B9-240 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your trucks, trailers and buses. Bellows air springs provide a constant level of traction and provide trouble-free service.

Goodyear airbags can protect cargo and provide horizontal transportation and long-term service. Bellows air springs provide quiet, cushioned driving, and because of less vibration, they have a longer service life than steel springs. The driver is more comfortable when riding, fatigue is reduced, and remains alert. In addition, the cargo has better shock and vibration resistance.

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-240

Air spring 63-0166 12C-1-36

Goodyear Number: 2B9-240

Bellows type: double

Ultraman Bellow Number:

Firestone bellows Number:

Goodyear Bellows Number: 578-92-3-202

Contitech bellows Number:

Triangle bellows Number:

Base plate/neutron type:

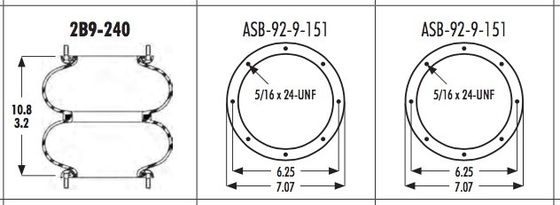

Number of top plate holes/studs: 8

Top plate diameter: 7.07

Top plate C to C diameter: 6.25

Base plate hole bolt Qyt: 8

Diameter of base plate: 7.07

Diameter of base plate C to C: 6.25

Base plate part number:

Bottom plate alignment: parallel

Bumper: No

bracket:

Minimum height: 3.2

Maximum height: 10.8

2B9-240 Goodyear Air Spring Technical parameters

❶Nut / Blind Nut

Top plate screw (nut) teeth: 1/2-13 or 1/2-20
The screw center distance of the top cover plate: 159 mm
Screw (nut) teeth of the bottom cover plate: 1/2-13 or 1/2-20
Screw center distance of bottom cover plate: 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/2-18NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 180 mm

Bottom Cover Plate Diameter: 180 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm
